Honeycomb Belt Manufacturer — Flat Wire / Honeycomb Conveyor Belts
At Engineerswiremesh, we specialize in manufacturing premium quality Honeycomb Belts designed to meet the toughest demands of industrial conveying systems. Built with precision engineering and superior materials, our Honeycomb Belts provide excellent strength, long service life, and efficient operation across industries like food processing, automotive, heat treatment, glass, baking, and metalworking. Manufacturer of heavy-duty honeycomb (flat-wire) conveyor belts. Stainless & carbon steel options, custom widths, datasheets & export-ready.
Request A QuotePremium Honeycomb Belts for Industrial Applications
✅ Wide Material Options – Stainless Steel, Carbon Steel, Galvanized ✅ Custom Sizes & Widths – Tailored to your process needs ✅ High Load Capacity – Handles heavy-duty operations with ease ✅ Heat & Corrosion Resistant – Ideal for demanding environments
Explore Applications
Precision Engineering
Durability
What is a Honeycomb Belt?

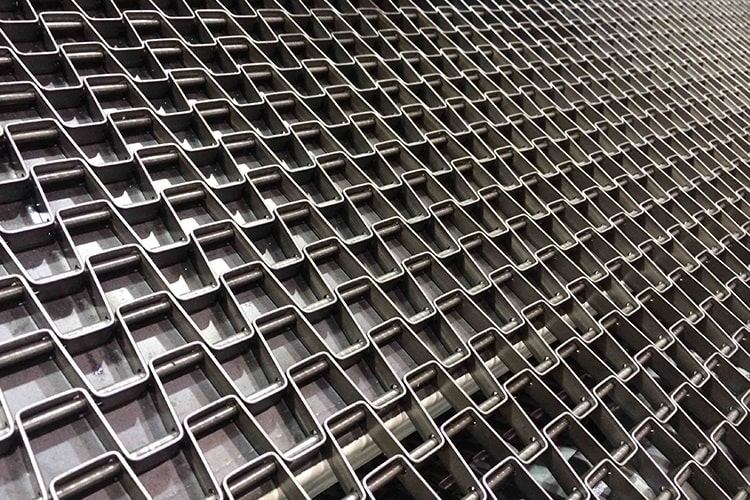

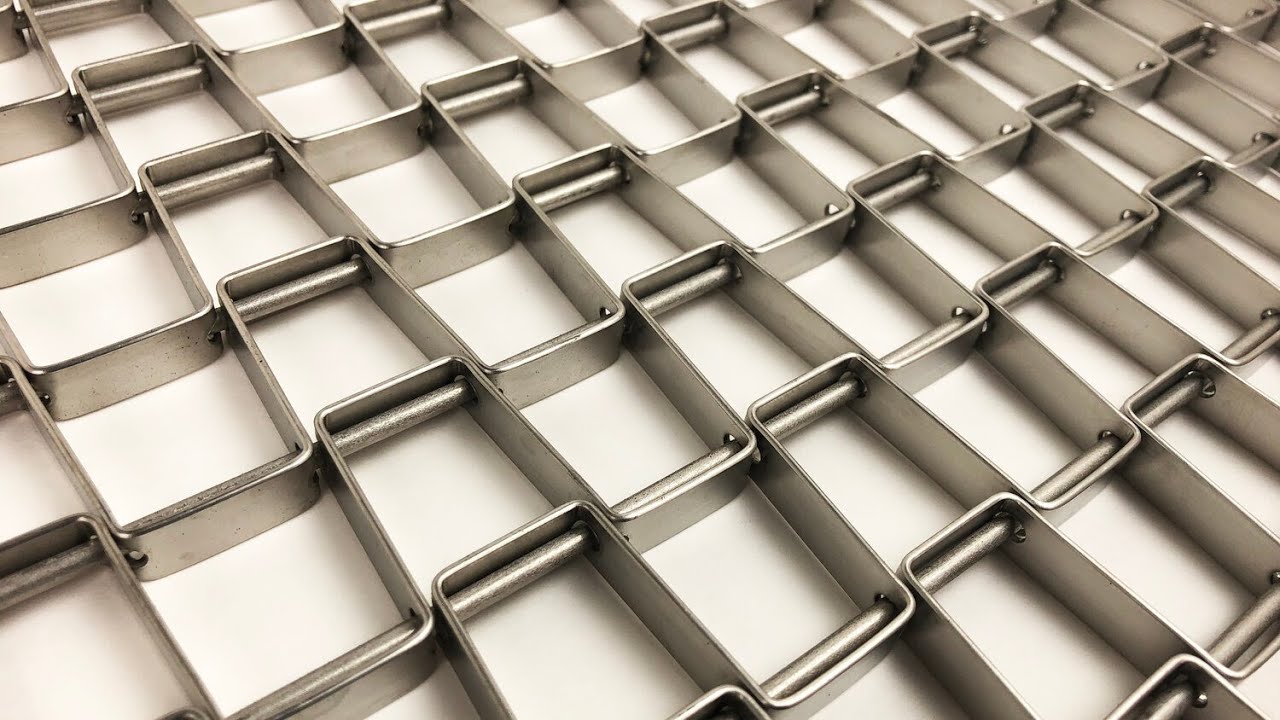

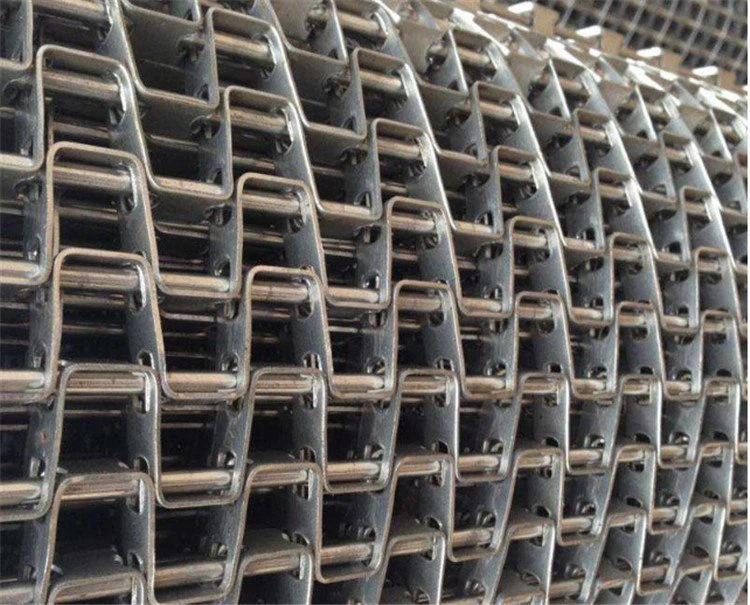

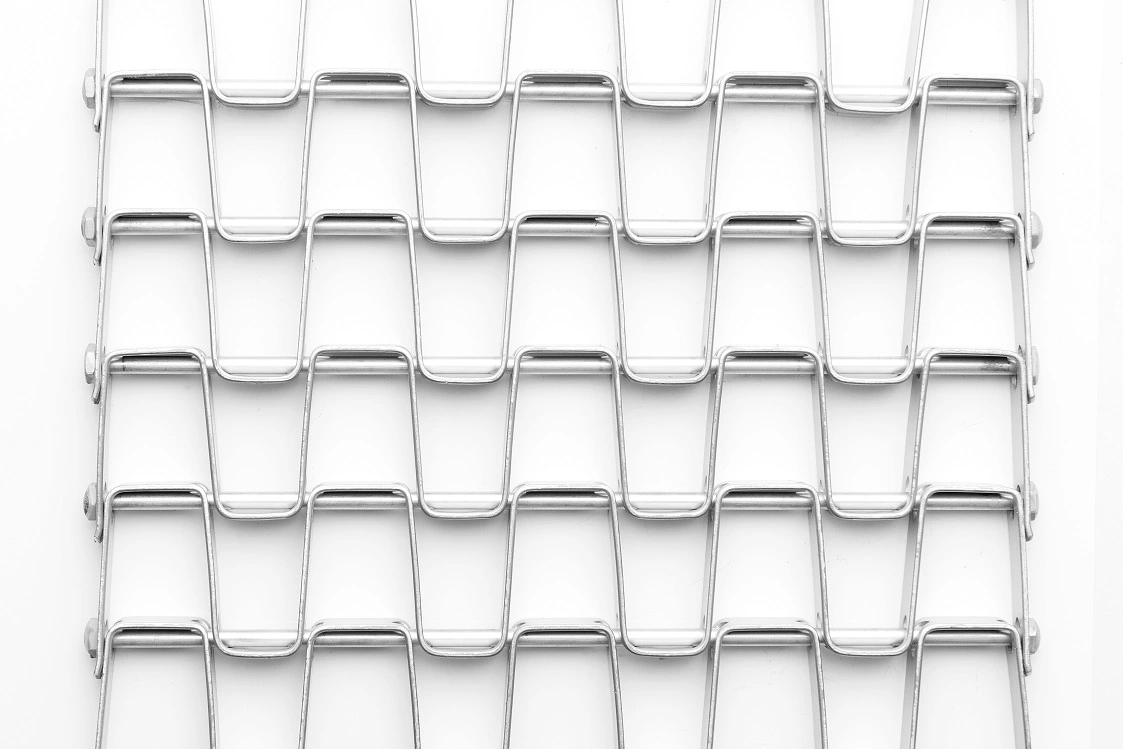

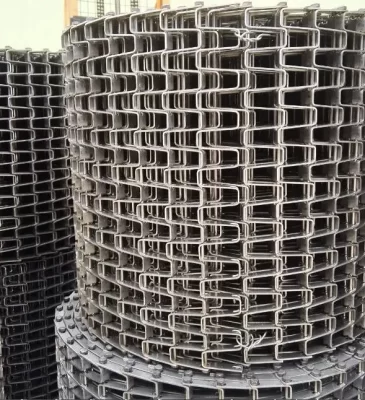

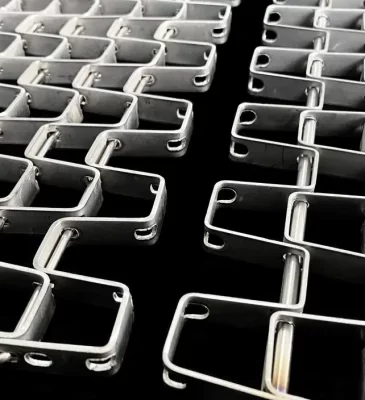

A Honeycomb Belt is a flat wire conveyor belt featuring a continuous series of welded cross rods with strip plates, forming an open mesh pattern that resembles a honeycomb. These belts are highly durable, flexible, and allow maximum air circulation, making them suitable for both heating and cooling applications.
Technical Specification
Material Options:
Stainless Steel (304, 316, 310) – For corrosion & heat resistance
Carbon Steel – Cost-effective for general applications
Galvanized Steel – Rust-protected for moderate conditions
Standard Edge Types:
Welded Edge

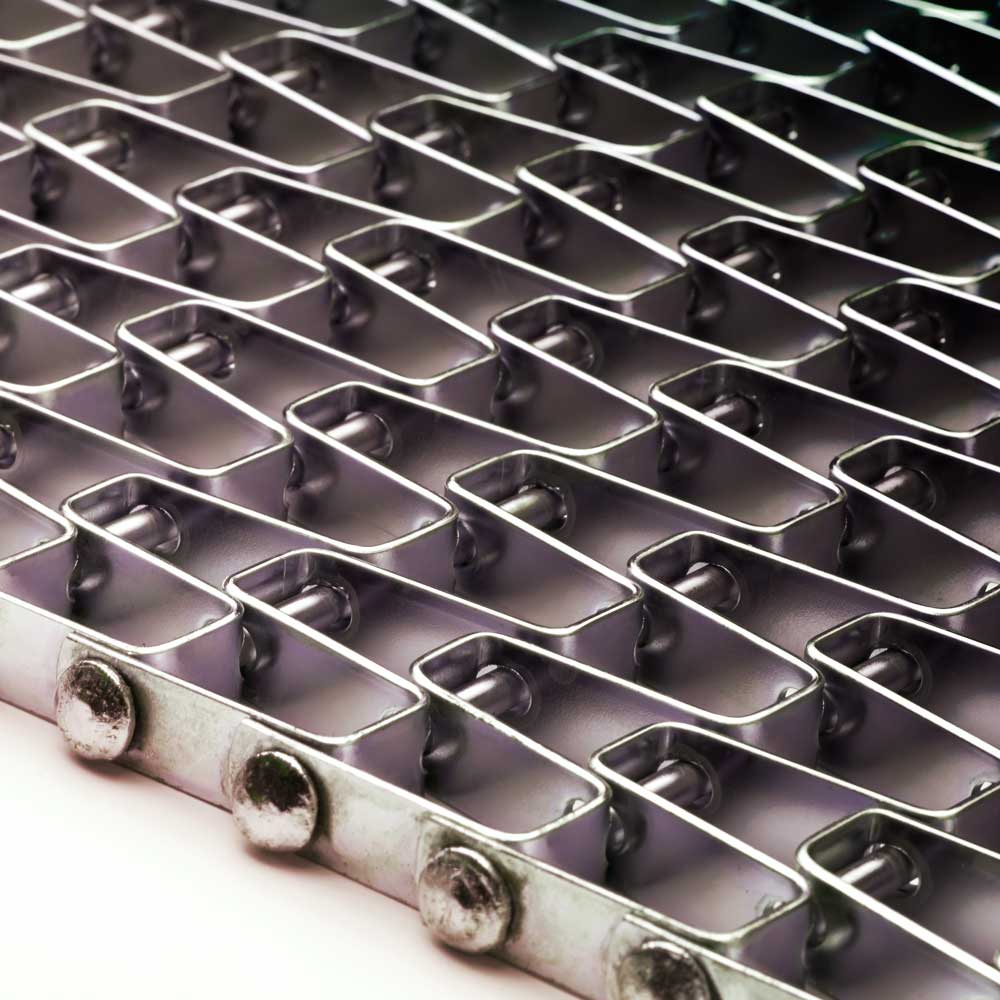

Chain Edge for heavy-duty applications
Belt Widths: Customizable from 300mm to 4000mm (or as required)
Pitch: 12.7mm to 50.8mm (varies by application)
Cross Rod Diameter: 3.0mm – 8.0mm
Strip Plate Thickness: 1.0mm – 3.0mm
Temperature Range: Up to 1200°C (material dependent)
Load Capacity: Engineered for light to heavy-duty conveying
Key Features Of Honeycomb Belts
Flat Surface – Provides stable conveying for all product types
Open Mesh Design – Ensures proper airflow and drainage
Excellent Tracking – Runs straight with minimal side movement
Easy Cleaning & Maintenance – Hygienic for food industry use
Customizable – Manufactured as per your machine and process requirements
Applications Of Honeycomb Belts
Food Processing & Baking – Cooling, freezing, washing, drying, and baking lines
Heat Treatment & Furnace Conveying – Handles high-temperature operations
Automotive Industry – Conveying and quenching processes
Metalworking – Annealing, hardening, and part transport
Glass & Ceramics – Continuous furnace and kiln conveyors
General Industrial Uses – Packaging, washing, and material handling
Why Choose Engineerswiremesh Honeycomb Belts?
Precision Engineering
Uniform flat surface for smooth conveying of light to heavy products. Honeycomb design ensures high strength with low belt weight. Accurate edge finishing prevents belt distortion and breakdown.
Efficient & Cost-Effective
Open structure allows easy cleaning and reduced product sticking. Energy-efficient operation due to lightweight yet strong construction. Low maintenance requirement saves long-term operational costs.
Customization Options
Available in different widths, lengths, and wire thicknesses. Can be tailored for specific industries such as food processing, automotive, glass, heat treatment, and electronics.
